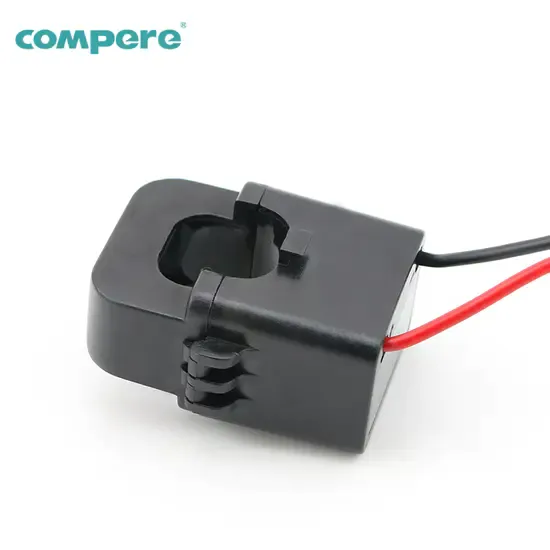

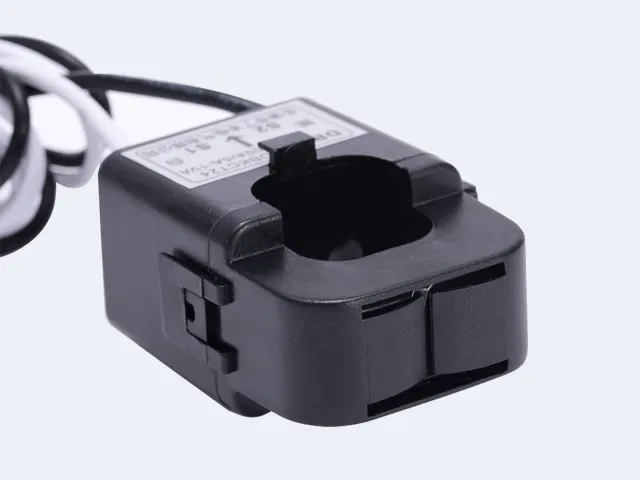

KP-YCT Split Core Current Transformer
In the measurement of electric energy, some measurement loops cannot directly measure electrical parameters. In this environment, it is necessary to measure through the transformer.

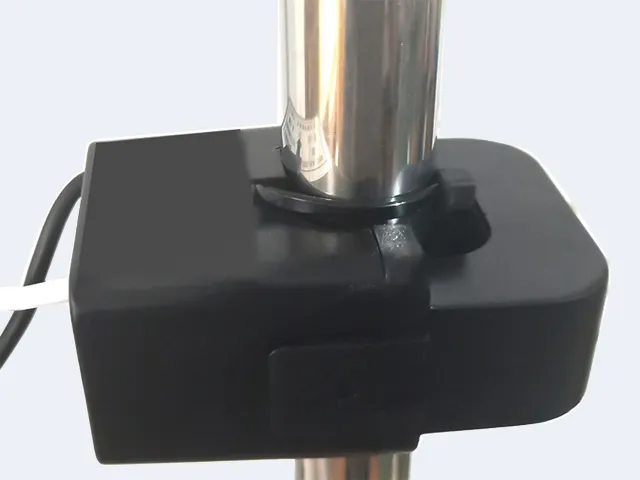

The split core current transformer is designed for the electrical installation without disassembling and disconnecting the existing main bus or cable.
The secondary output 5A or 1A standard current signal matches the input port of the power meter’s measurement and control terminal. It’s applicable to electric power meter, switch cabinet, control cabinet and other power measurement and control equipment.
Features
Functions of KP-YCT Split Core Current Transformer
- KP-YCT Split Core Current Transformer
- 1. Open-close type installation, easy to install and disassemble.
- 2. Stable performance, light weight.
- 3. Open-close type design, no to need to cut off the power.
Record Function
- 1. Flame retardant plastic shell.
- 2. Pure copper coil and iron core made
- 3. Durable and practical
- 4. Secondary rated output 5A, 1A is avaible if u need.
- Multiple core size for option, 10/16//20/24/36/50mm.
- Primary current input 5A-1000A.
- Secondary current output 2.5mA-50mA, 1A, 5A.
| Model | Rated current input（A） | Rated current output mA/mV Customizable |
Accuracy Class | Core dia | Size（mm） | ||
| Length | Width | Height | |||||
| KP-YCT-T10 | 5~80A (5 10 20 50 75 80) |
0~80mA 0.333v |
0.5 1.0 | 10mm | 23.1 | 26.0 | 39.3 |
| KP-YCT-T16 | 50~120A (50 75 100 120) |
mA/1A 0.333v |
0.5 1.0 | 16mm |
28.6 | 30.5 | 44.5 |
| KP-YCT-T24 | 50~300A (50 100 150 200 300) |
5A | 0.5 1.0 | 24mm |
46.0 | 35.0 | 65.4 |
| KP-YCT-T36 | 150-600A (150 200 250 300 400 500 600) |
5A | 0.5 1.0 | 36mm | 57.5 | 41.4 | 85.2 |
| KP-YCT-T50 | 300~1000A (300 400 500 600 800 1000) |
5A | 0.5 | 50mm | 81.0 | 51.5 | 120.0 |
| Model | Input /Output（A） |
Accuracy Class |  |
| KP-YCT-T24 | 100/5 | 1.0 | |
| 150/5 | 1.0 | ||
| 200/5 | 0.5 | ||
| 250/5 | 0.5 | ||
| 300/5 | 0.5 | ||
| KP-YCT-36 | 100/5 | 1.0 |  |
| 150/5 | 1.0 | ||
| 200/5 | 1.0 | ||
| 250/5 | 0.5 | ||
| 300/5 | 0.5 | ||
| 350/5 | 0.5 | ||
| 400/5 | 0.5 | ||
| 450/5 | 0.5 | ||
| 500/5 | 0.5 | ||
| 600/5 | 0.5 | ||
| KP-YCT-50 | 200/5 | 0.5 |  |
| 250/5 | 0.5 | ||
| 300/5 | 0.5 | ||
| 350/5 | 0.5 | ||
| 400/5 | 0.5 | ||
| 450/5 | 0.5 | ||
| 500/5 | 0.5 | ||
| 600/5 | 0.5 | ||
| 700/5 | 0.5 | ||
| 800/5 | 0.2 | ||
| 1000/5 | 0.2 |
