KPM31D Socket type outdoor single phase electricity ANSI meter

KPM31D Socket type outdoor single phase electricity ANSI meter is in full compliance with the international standard ANSI_C12.21-2006 on the 0.5S class energy meter of the relevant technical requirements. It integrates measurement of voltage, current, power, demand power consumption and communication together.

Features

Socket type, Outdoor
Complied with C12.1 C12.10 C12.18 C12.19 C12.20
LCD 6+1 Energy display way, Display instantaneous item:Voltage,Current, Active Power.
Communication port: optical port, RS485, RF, and PLC，LORA Optional
Max 4 rates can be set, default T1
Max Demand display
2 levels of password
12 months History metering data and 50 events of power on/off and meter reset
Dis-connect Relay optional
Rated 100A 200A for option
FM1S FM2S optional

Functions of KPM31D Socket type outdoor single phase electricity ANSI meterr

KPM31D Socket type outdoor single phase electricity ANSI meter
Display Voltage,Current, Active Power
LCD 6+1 digits
Max demands display, 4 rates

High accuracy: Active Power Class 0.5
Current 100A 200A optional
FORM 1S 2S optional ( Single phase 2 wire, single phase 3 wire )
12 months History metering data and 50 events of power on/off and meter reset

Battery of KPMG60 Motor smart temperature vibration sensor:

Communication function:
Optional LoRa, RF, Optical, RS485, PLC Port, etc.
LoRa, RF for wireless communication.

Installation:
Socket installation
Outdoor waterproof cover
Optional disconnect relay for remote control on/off.

Single Phase Multi-Tariff ANSI Meter（FM2S）

MODEL	FM2S CL200 3W	FM2S CL100 3W	FM2S CL200 3W	FM2S CL100 3W
Power Supply type	Transformer	Transformer	Transformer	Transformer
Current Measurement Type	Current Transformer	Current Transformer	Current Transformer	Current Transformer
Dis-Connect Relay	×	×	√	√
Optical Port	√	√	√	√
RS485 Port	□	□	□	□
RF Port	□	□	□	□
PLC Port	□	□	□	□
Lora Port	□	□	□	□
ILAC or KEMA	√	√	√	√

Single Phase Multi-Tariff ANSI Meter（FM1S）

MODEL	FM1S L200 2W	FM1S L100 2W	FM1S L200 2W	FM1S L100 2W	FM1S L200 2W	FM1S L100 2W
Power Supply type	Transformer	Transformer	Transformer	Transformer	Transformer	Transformer
Current Measurement Type	Current Transformer	Current Transformer	Current Transformer	Current Transformer	Shunt	Shunt
Dis-Connect Relay	×	×	√	√	×	√
Optical Port	√	√	√	√	√	√
RS485 Port	□	□	□	□	□	□
RF Port	□	□	□	□	□	□
PLC Port	□	□	□	□	□	□
Lora Port	□	□	□	□	□	□
ILAC or KEMA	√	√	√	√	√	√

Voltage	Operating Voltage	80%~120%Un (Un=240V)
Current	Test Current (TA)	CL200: 30A CL100: 15A
Current	Current range that guarantees accuracy	CL200: 0.6~200A (2%TA~Imax) CL100: 0.3~100A (2%TA~Imax)
Other parameters	Frequency	60Hz±5%
	Kh	10
	Power supply type	Transformer type
Power Consumption	Voltage circuit	<1W, 5VA
Power Consumption	Current circuit	<0.25VA/Each
Test	Immunity to impulse voltage	Surge >8kV (1.2/50US)
Confidence	Insulation strength	4kV, 60Hz for 1 min
Confidence	Relative humidity	0%~95% no condensation
Temperature	Operating Temperature	-40°C ~ +80°C
Temperature	Storage and Transportation Temperature	-45°C ~ +85°C
Clock accuracy		< 0.5 s/d, at 23°C
Battery		Li-SOCI2, 3.6V, 1200mAh for clock and LCD display during power off.
Communication Port	Optical port	ANSI type 2 with 9600bps
	RS485 port	Optional
	RF port	Optional
	PLC port	Optional
	Lora port	Optional
Demand	Maxim demand	Maxim demand ;date; time;
Demand	Dis-connect Relay	15(100)A 30(200)A

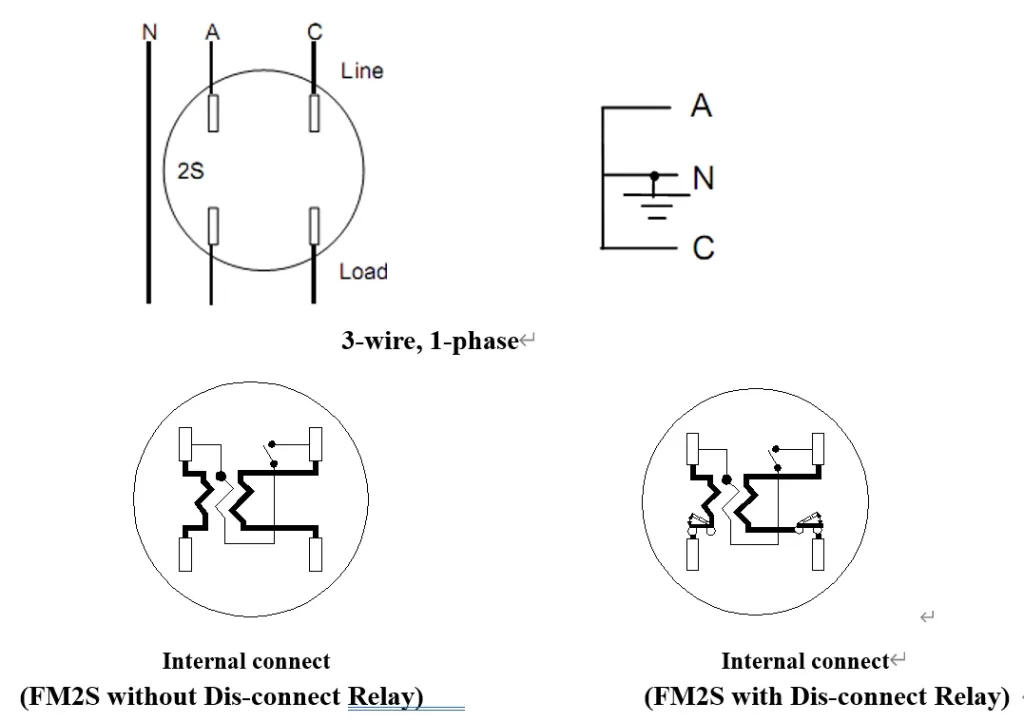

KPM31D Socket type outdoor single phase electricity ANSI meter Single phase 3 wire wiring diagram

Single phase 2 wire wiring diagram
