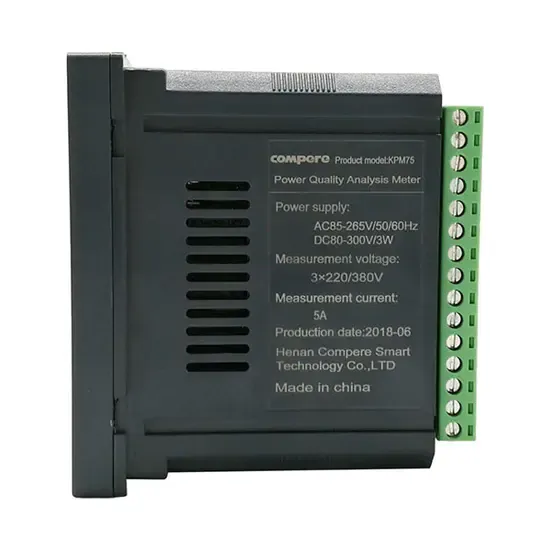

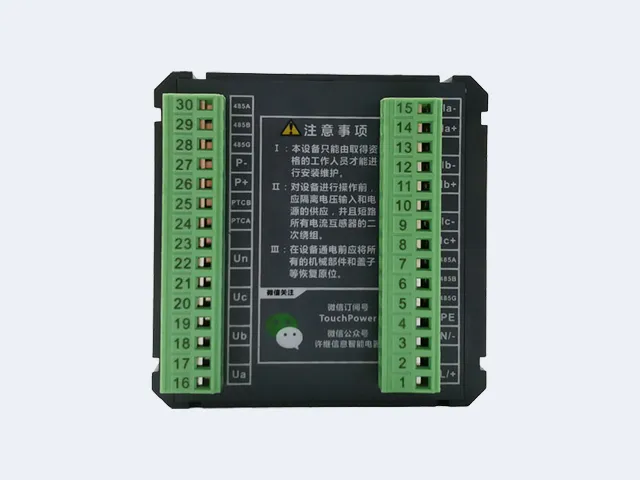

KPM75 Power Quality Analyzer
KPM75 is the advanced power quality analyzer that follow international power quality standards and monitor all power quality parameters such as flicker, short interruptions in recorded voltage, and harmonic up to 63rd measurements with power data Statistics, IO signal control alarm, communication and other functions.
It’s mainly used in main line to monitor the incoming line grid power quality online in real time.
Features
- Advanced power quality analyzer, can measure voltage imbalance rate, voltage deviation, frequency deviation,measure and record voltage fluctuations and flicker, inter-harmonics,voltage swell, voltage dips and short interruptions and other power quality events.
- Digital panel power meter, standard 96*96mm panel installation
- Multifunction measurement, support three phase voltage, current, power, power factor, frequency, 4 quadrant energy, 2-63rd harmonics, etc. measurement.
- Standard RS485 MODBUS RTU communication, optional 2nd loop Modbus RTU communication and Profibus-DP communication
- Optional 4 DI, 4 DO, 1 Temperature input, etc.
- High measuring voltage range, upto 380V/660V.
Functions of KPM75 Power Quality Analyzer
- Online Power Quality Analyzer
- Full electrical parameter measurement: UL-L, UL-N, I, F, PF, P, Q, S, four-quadrant energy, etc.
- High accuracy:
- U Class 0.2;I Class 0.2
- P Class 0.2S;Active energy Class 0.2S
- Power quality analysis:
- 2-63rd harmonic analysis;I/U Total distortion rate;
- Crest coefficient; Valley coefficient;
- Voltage imbalance rate, deviation; frequency deviation, etc.
- Voltage fluctuation, flicker, intermittent wave, etc.
- Voltage short interruptions, surges and sags, etc.
Record function:
- 50 voltage fluctuation events; 50 voltage flicker events;
- 50 voltage short interruptions events; 50 voltage surges and sags events;
- Monthly average power factor and power data for the last three months;Maximum and minimum data
- 100 digital inputs events;100 digital outputs events;
- Meter working time, load time statics.
- Communication: RS485/Modbus-RTU;Profibus-DP
- Multi rate: Total 4 tariffs for 8 different time slots
- Optional function:
- 4 digital inputs;
- 4 digital outputs;
- PT100 temperature monitoring;
- 4-20mA analog output

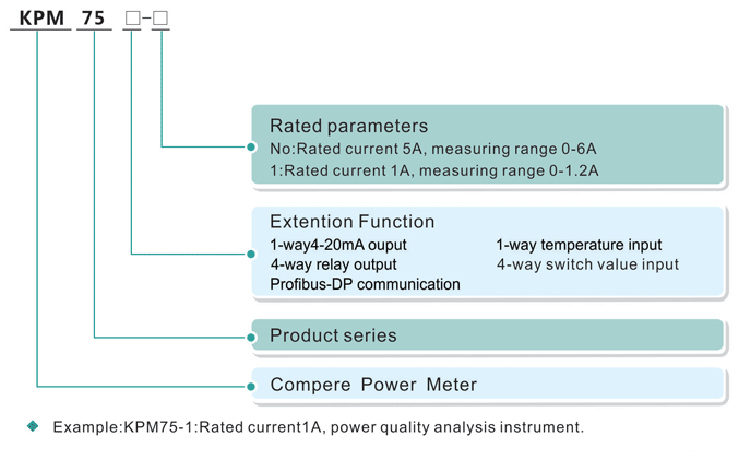

KPM75 Power Quality Analyzer Technical Tables
| Working Power Source | Operating Voltage | AC 85-265V / DC 80-310V |
| Rated Power Consumption | < 3VA | |
| Input Voltage | Rated Voltage | 57.7/100V, 220/380V, 380/660V |
| Overvoltage Capability | 1.2x rated voltage (continuous); 2x rated voltage (10s) | |
| Input Current | Rated Current | Default 5A, Range: 1-6A; Optional 1A, Range: 1-1.2A |
| Overload Capacity | 1.2x rated current (continuous); 20x rated current (1s) | |
| Measurement Accuracy | Voltage | ±0.2% (0.01V) |
| Current | ±0.2% (0.01A) | |
| Communication | Port | RS485, Photoelectric isolation interface |
| Protocol | Modbus-RTU, 1200-38400BPS | |
| Safety | Withstand Voltage | AC2kV/min~1mA input-output-source |
| Insulation | >50MΩ |
KPM75 Power Quality Analyzer Application
