What is a Rogowski Coil?
A Rogowski Coil, also known as an air-core coil or Rogowski current transformer, is a highly accurate and flexible sensor used for measuring alternating current (AC) in modern smart electricity meters and power monitoring systems.
While traditional electricity meters rely on bulky iron-core current transformers (CTs) or shunts, the Rogowski coil completely revolutionizes current measurement through its unique coreless construction.
Understanding the Rogowski Coil
At its core, a Rogowski coil is an evenly wound helical coil wrapped around a non-magnetic (air-core) flexible or rigid support. The term “air-core” means that it lacks the heavy iron core found in conventional transformers, utilizing materials like plastic, epoxy, or simply air as the backing substrate.
Working Principle
The operation of a Rogowski coil is based on Faraday’s Law of Electromagnetic Induction:
- When an AC conductor passes through the center of the coil, it generates a time-varying magnetic field around itself.
- Because there is no iron core, this magnetic field directly links with the coil turns, inducing a voltage output e across the coil terminals.
- This induced voltage is directly proportional to the rate of change (derivative) of the current flowing through the primary conductor.

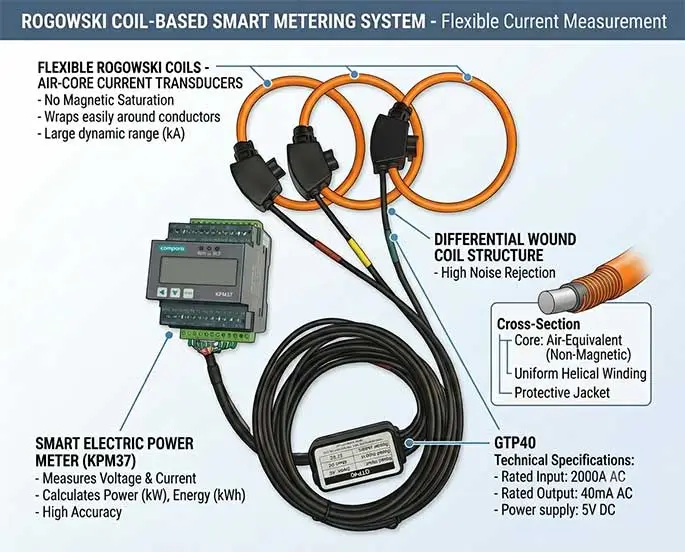

How It Enables “Flexible” Current Measurement in Meters
In electricity meter design, the Rogowski coil is synonymous with flexibility. This adaptability stems from several groundbreaking inherent advantages:
1. Physical Flexibility: Easy Installation & Retrofitting
Traditional iron-core CTs require a closed magnetic ring, which often mandates disconnecting the main power lines to thread the conductor through, or using heavy split-core mechanisms.
- Flexible Design: Rogowski coils can be manufactured as flexible, rope-like loops. They are lightweight and can easily warp around thick, irregularly shaped conductors, busbars, or cables tucked inside tight panels.
- Non-Intrusive Deployment: This physical adaptability allows technicians to perform retrofits or onsite diagnostics on existing meters without shutting down power or cutting wires—simply clip or tie the coil around the live conductor.
2. Measurement Flexibility: Ultra-Wide Dynamic Range
Conventional iron-core transformers suffer from magnetic saturation—when current exceeds a certain threshold, the iron core cannot absorb more magnetic flux, resulting in clipped, distorted readings or equipment damage.
- Immune to Saturation: Since Rogowski coils contain no ferromagnetic material, they never saturate.
- Scalability: A single Rogowski coil sensor can accurately measure currents ranging from a few amperes (A) up to hundreds of kiloamperes (kA). This massive dynamic range enables a single meter architecture to serve residential consumers and heavy industrial plants alike.
3. Architectural Flexibility: High Linearity & Tamper Resistance
- Superior Linearity: Lacking the hysteresis loops and non-linear properties of iron, the output signal remains perfectly linear across its entire measurement range, drastically simplifying meter calibration algorithms.
- Anti-Tampering Capabilities: Traditional meters are highly vulnerable to external DC magnetic interference (often utilized for electricity theft). Because Rogowski coils do not have an iron core, they cannot be blinded or biased by external permanent magnets, making them inherently secure against magnetic tampering.
Conclusion
By blending an innovative “air-core” topology with digital integration techniques, the Rogowski coil breaks free from the physical constraints of traditional magnetic components. It empowers modern electricity meters with unprecedented physical flexibility for easy installation and an unparalleled measurement range. From high-density smart grid distribution cabinets to uninterrupted industrial sub-metering, Rogowski coils have redefined flexible current sensing.
