In traditional industrial park management, meter reading has always been a labor-intensive task. Facing scattered, environmentally challenging, and high-positioned factory power distribution rooms, manual meter reading is not only inefficient but also prone to errors. More seriously, the traditional “use first, pay later” model often puts immense pressure on park managers in terms of upfront funding and difficulty in collecting payments.
Compere’s unmanned automated meter reading solution aims to completely upgrade the traditional power management model into a digital and automated closed-loop system through IoT technology.
Core Pain Points: Why is “Unmanned Operation” Essential?
High Labor Costs: Large industrial parks often have hundreds of meters, and manual verification, invoicing, and payment collection consume significant manpower.
Long Billing Cycles: In the traditional model, there is often a 1-2 month lag between meter reading and fund recovery.
Coarse Data Granularity: Monthly data cannot reflect peak and off-peak electricity consumption, making it difficult to support energy efficiency optimization and transformer capacity expansion decisions.
Safety Hazards: Overload and leakage anomalies cannot be monitored in real time; detection is often reactive, only occurring after an accident has occurred.
System Architecture: End-to-End Digital Connectivity
This solution consists of three parts: smart hardware, communication gateways, and a cloud platform, building a complete power Internet of Things (IoT).
1. Terminal Sensing: High-Precision Smart Meters

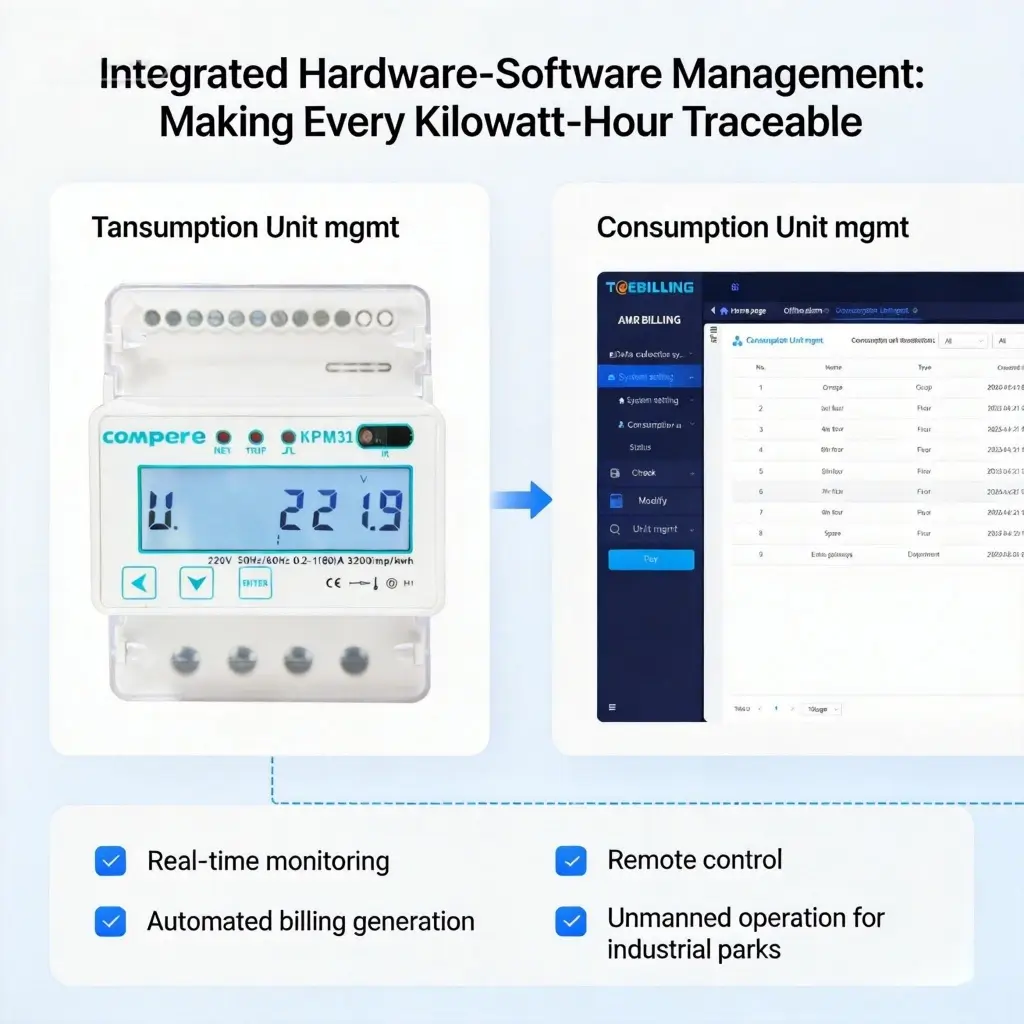

Deploy Compere smart prepaid electricity meters (such as the KPM31) at the distribution box. These meters not only possess extremely high metering accuracy (Class 0.5s) but also support bidirectional metering and multi-rate configurations.
2. Stable Transmission: Multi-Protocol Communication Gateway
Provide flexible networking based on the campus environment:
RS485 Wired Networking: Suitable for newly built campuses, offering extremely stable transmission.
LoRaWAN/NB-IoT Wireless Networking: Suitable for upgrading older campuses; no wiring required, plug-and-play.
4G Full Network Compatibility: For distributed factories, data is directly connected to the cloud.
3. Cloud-based Brain: T@Prepay Prepaid System
All data is aggregated in the management backend. Administrators can monitor the electricity status of the entire park in real time via webpage or app, achieving transparency in finance and energy consumption.
Three Core Advantages Of Automated Meter Reading Solution
1. Prepaid Model, Solving the Problem of Overdue Payments
The system supports a “top up first, use electricity later” logic. When a tenant’s electricity balance falls below a warning threshold, the system automatically sends an SMS/email reminder; when the balance is depleted, the system can remotely and automatically cut off power, restoring it immediately after topping up. This fundamentally avoids the risk of overdue electricity payments.
2. Automatic Reconciliation and Electronic Reports
No manual data entry is required. The system automatically generates monthly energy consumption reports and electricity bills for each tenant. It supports exporting to standard formats and directly interfaces with the financial ERP system, achieving “zero error” reports.
3. 24/7 Real-time Power Monitoring
Unattended operation does not mean “unsupervised.” The system monitors voltage, current, power factor, and harmonics in real time. In the event of power overload or equipment malfunction, the system sends out alarms within seconds, allowing maintenance personnel to intervene before an incident occurs.
Implementation Results: From 5 Days to 5 Minutes
After implementing the Compere solution, a large industrial park experienced significant improvements in management efficiency:
Meter reading time: Reduced from 5 days with 3 workers to one-click generation in the management backend (5 minutes).
Cash flow: Achieving 100% prepayment increased the park’s average monthly cash flow recovery speed by 45%.
Energy optimization: Data analysis revealed multiple transformer no-load losses, resulting in an additional 8% saving in electricity costs annually.
Conclusion
Digital transformation is not about following trends, but about solving the most practical survival cost issues. Unmanned automatic meter reading solutions are not only a “burden-reducing tool” for park managers, but also a core component of smart park infrastructure construction.
Need a customized solution for your project? We provide full-process consulting from hardware selection to software customization.
