KPM60F Low-voltage Motor Protection Controller
The KPM60F split-type motor protection controller is suitable for industrial applications to protect motors. It significantly simplifies the secondary control and protection circuits of the motor by providing protection, control, measurement, and fault management functions. It offers comprehensive protection and control measures, and its network-based communication with various buses enables networked management of the motor.
KPM60F adopts a modular design, which is small and compact, and easy to install. It can be used in low-voltage control terminal cabinets and 1/2 module or larger drawer cabinets for DIN rail installation, and is suitable for applications in coal mines, petrochemical plants, metallurgy, and power industries.
Features
Monitoring data
- Motor status
- Three phase current
- Max starting current
- Ground current
- Heat capacity
- Leakage current (add leakage protection function)
- Active / Reactive power
- Power factor
- Three-phase voltage
- Active / Reactive energy
Perfect management function
- Use different operating, maintenance and diagnostic data to help users understand possible faults and prevent them with preventative measures.In the case of failure, rapid diagnosis, positioningAnd correct the problem.
Maintain data
- Motor running time
- Motor start time
- Motor trip time
Diagnostic data
- Self-test information
- Current/ Auxiliary contact feed back error
- Motor fault alarm information
- Running cool down time
- Motor fault trip information
Comprehensive motor protection:
- Ground protection
- Phase failure protection
- Phase sequence protection
- Current imbalance protection
- External fault protection
- Overvoltage protection
- Undervoltage protection
- Under-power protection
- Power factor protection
- Low voltage restart protection
- Overload protection
- Underload protection
- Stall protection
- Blocking protection
- Start overtime protection
- Contactor sectional current protection
- TE time protection
- Temperature protection
- Leakage protection
- PT/CT ratio programmable
Flexible start function
- Protection mode
- Star / Triangle start
- Direct start mode
- Bidirectional reversible start
Communication function
- Modbus-RTU
- Profibus-DP
Control method
- Monitoring center remote control
- Operation panel control
- External input control (Such as: button)

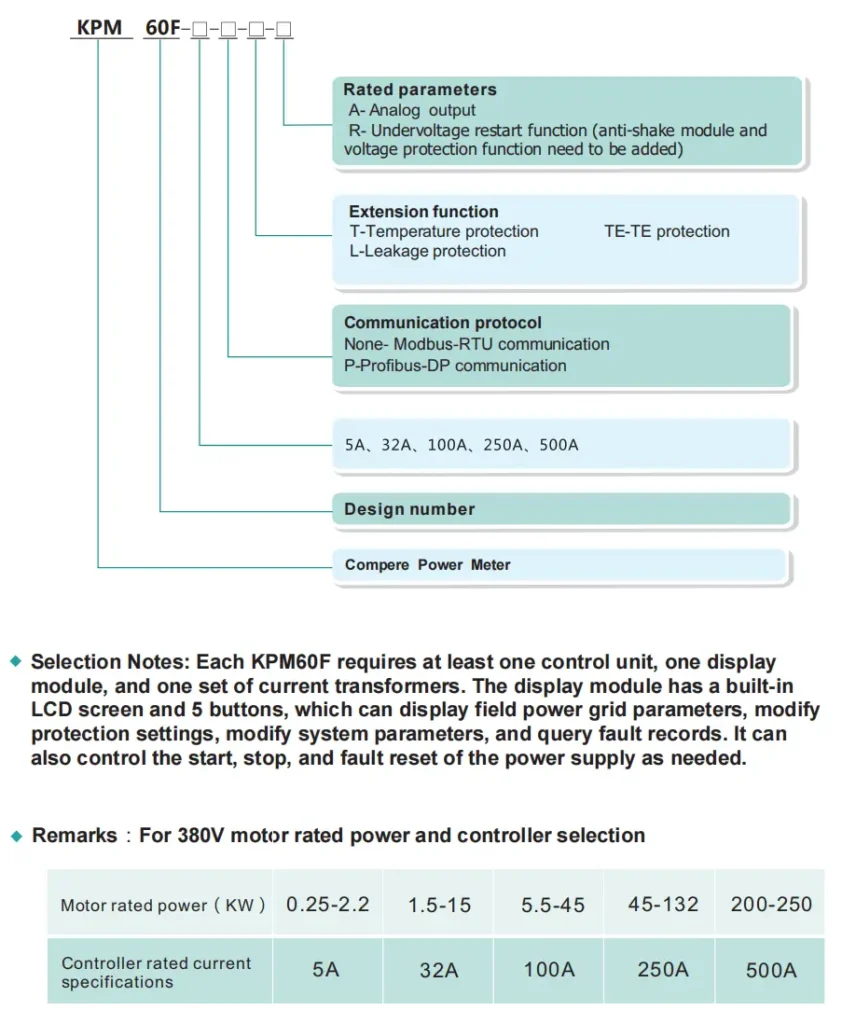

KPM60F Low-voltage Motor Protection Controller Model Selection
KPM60F Low-voltage Motor Protection Controller Technical Tables
| Working power source | Operating Voltage | 85-305VAC/70-430VDC |
|---|---|---|
| Rated power | < 5VA | |
| Input voltage | Rated voltage | 380V-660V |
| Frequency range | 45~65Hz | |
| Input current | Rated current | 5A, 32A, 100A, 250A, 500A |
| Frequency range | 45~65Hz | |
| Input Output | Switch value input | 8-way passive main line contact DI input, internal supply DC24V power source |
| Relay output | 4-way DO output, Contact capacity 250VAC/5A, 30VDC/5A | |
| Analog output | Output range 4~20mA, Programmable | |
| Temperature input | Measure range 0℃~100℃ | |
| Measurement accuracy | Current | ±1.0% (10%Ie~120%Ie) |
| Leakage current | ±1.0% (5%Ise~100%Ise) | |
| Voltage | ±0.5% (20%Ue~150%Ue) | |
| Frequency | ±0.02Hz (45Hz~65Hz) | |
| Power factor | ±1.0% (-1~1) | |
| Energy | ±2.0% | |
| Power | ±2.0% | |
| Communication | Communication interface | RS485 Photoelectric isolation interface |
| Communication protocol | Modbus-RTU,1200~38400bps Profibus-DP,9600~12Mbps | |
| Electrical insulation | Power frequency withstand voltage | AC2kV/min~1mA Input-output-power source（GB/T 13729） |
| Insulation resistance | >50MΩ（GB/T 13729） | |
| Impact voltage | 5kV（Peak）, 1.2/50us（GB/T 13729） | |
| Working environment | Operating temperature | -25℃~+70℃ |
| Relative humidity | 5%~95% No condensation | |
| Storage temperature | -30℃~+75℃ | |
| Electromagnetic Compatibility | Surge (impact) immunity | GB/T 17626.5-2008,Level3,IEC61000-4-2, level 4 |
| Fast pulse group immunity | GB/T 17626.4-2008,Level3,IEC61000-4-5, level 4 | |
| Electrostatic discharge immunity | GB/T 17626.2-2006,Level3,IEC61000-4-4, level 4 | |
| Power frequency magnetic field immunity | GB/T 17626.8-2006,Level3,IEC61000-4-8, level 4 |

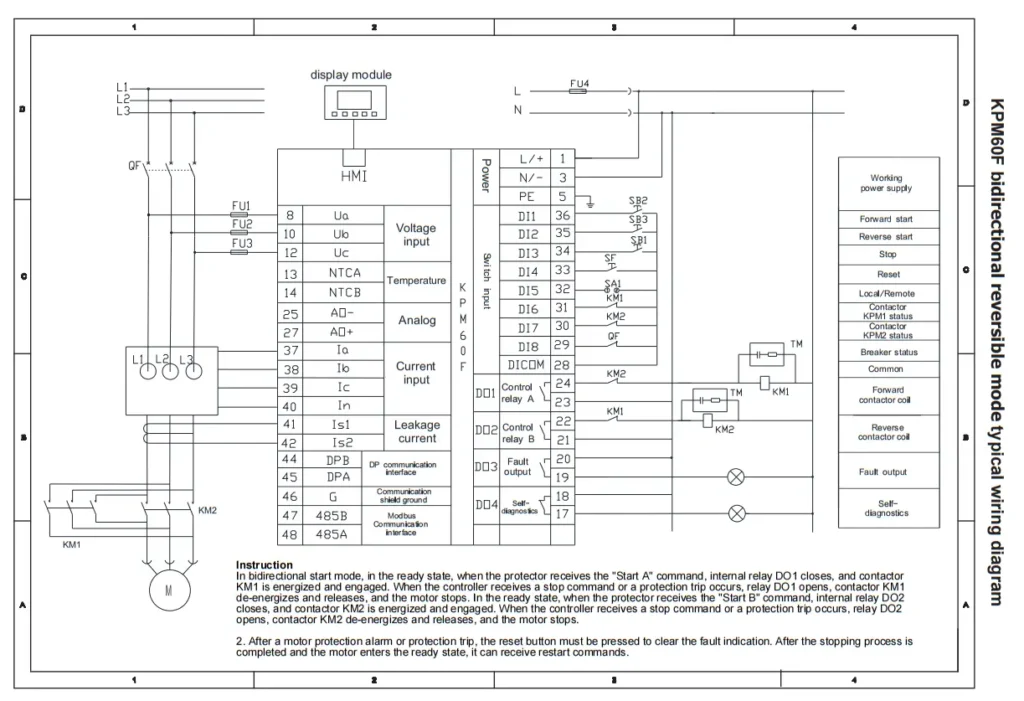

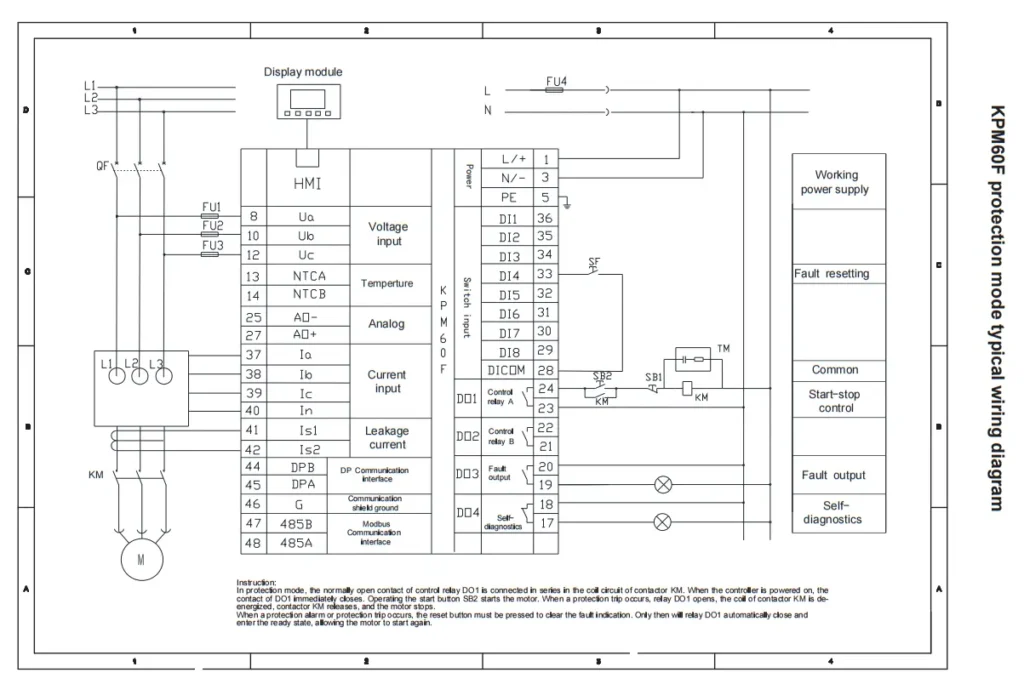

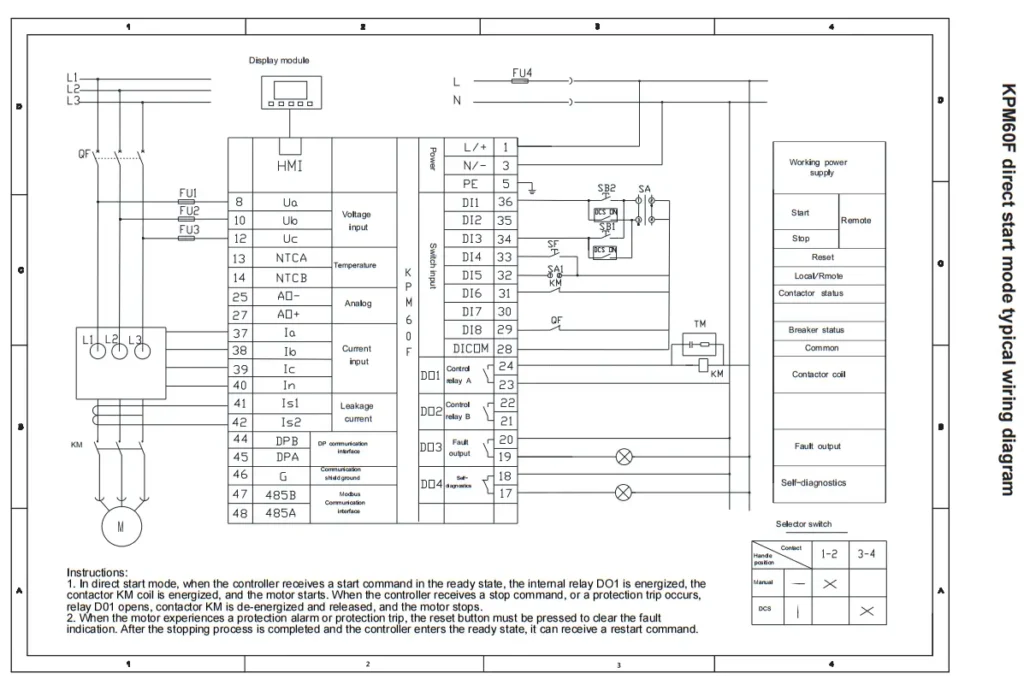

KPM60F Low-voltage Motor Protection Controller Typical Wiring
