Concept of 400Hz Power Meters
A 400Hz power meter is a metering device specifically designed for measuring and monitoring electrical energy in 400Hz AC systems. Unlike common 50Hz or 60Hz civilian power systems, 400Hz power systems are primarily used in aviation, aerospace, military, marine, and certain precision industrial fields. This special frequency power system offers significant technological advantages, and 400Hz power meters are a key component ensuring the efficient and safe operation of these systems.
Unique Advantages of 400Hz Power Systems
1. Reduced Weight and Size
In the aviation field, the weight of equipment and components is critical. Using 400Hz power systems can significantly reduce the size and weight of electromagnetic equipment such as transformers, motors, and generators because the higher the frequency, the less core material is needed to achieve the same power output.
2. Increased Power Density
400Hz systems support faster motor speeds, making them suitable for applications requiring high power density and rapid response, such as aircraft actuation systems, radar equipment, and precision instruments.
3. System Response Speed
Higher frequency current changes more rapidly, which is beneficial for systems requiring precise control and rapid adjustment.
Key Technical Features of 400Hz Power Meters
1. Precise Frequency Adaptability
The core of a 400Hz power meter is its ability to accurately measure and calculate electrical energy parameters under 400Hz conditions. Its internal circuitry and algorithms are specifically optimized to adapt to this specific frequency, avoiding measurement errors caused by frequency differences.
2. Wide Dynamic Range Measurement Capability
The load changes in aviation and special power systems can be very drastic. 400Hz meters need to have a wide range of accurate measurement capabilities, from extremely low-power standby states to peak loads.
3. High Reliability and Durability
Applied to harsh environments such as aviation and military, 400Hz meters typically possess stronger resistance to vibration and shock, wide operating temperature range (-40℃ to +70℃), and electromagnetic interference.
4. Multifunctional Parameter Monitoring
Besides basic energy metering (kWh), advanced 400Hz power meters can monitor various power quality parameters such as voltage, current, power factor, frequency deviation, and harmonic content.
5. Data Communication and Integration
Modern 400Hz power meters are typically equipped with communication interfaces such as RS-485, Modbus, CAN bus, or Ethernet, facilitating integration into aircraft avionics systems, ship monitoring systems, or industrial automation networks.

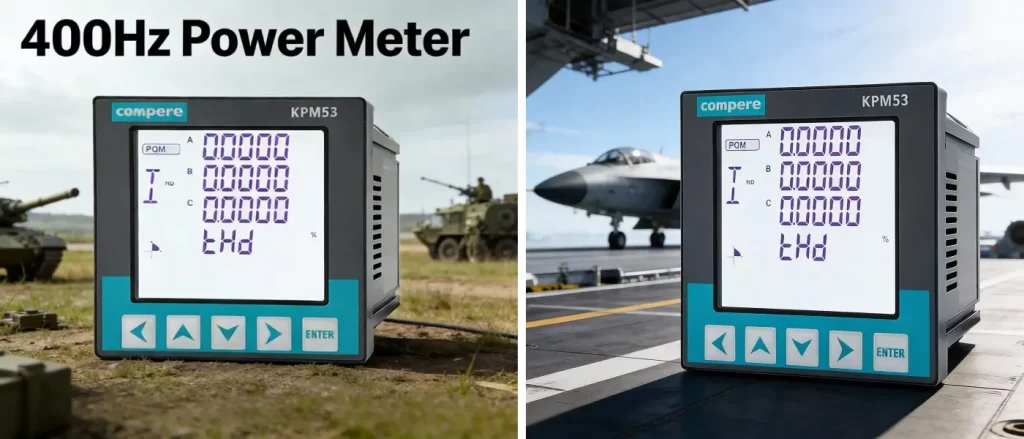

Main Application Areas of 400Hz Power Meters
1. Aviation and Aerospace
- Aircraft ground power supply testing
- Airborne power system monitoring (modern passenger aircraft such as the Boeing 787 and Airbus A380 use 400Hz airborne power grids)
- Aircraft maintenance and testing equipment
- Spacecraft power supply systems
2. Military and Defense
- Warship power systems (especially aircraft carriers and submarines)
- Radar and communication equipment power supply monitoring
- Field mobile power stations
3. Specialized Industries
- High-speed motor testing platforms
- Precision machining centers (some high-spindle speed machine tools use 400Hz motors)
- Semiconductor manufacturing equipment
- Data center backup power systems (some high-frequency UPS)
4. Scientific Research and Testing
- Avionics equipment laboratories
- Power converter R&D and testing
- Military equipment power verification
Considerations for Selecting a 400Hz Power Meter
1. Accuracy Class
Select an appropriate accuracy class (usually 0.2 to 1.0) based on application requirements. Aviation and military applications often require higher accuracy.
2. Compliance and Certification
Check for compliance with relevant industry standards (such as DO-160 and RTCA standards in the aviation field, MIL-STD standard in the military, or IEC standards in industry).
3. Environmental Adaptability
Select the appropriate protection level (IP rating), temperature range, and vibration resistance specifications based on the installation environment.
4. Installation and Integration Ease
Consider size, installation method (DIN rail, panel), wiring convenience, and communication protocol compatibility.
5. Data Management and Analysis Functions
Assess whether advanced functions such as data logging, real-time alarms, and remote monitoring are required.
400Hz Power Meter Market Development Trends and Technological Advancements
1. Digitalization and Intelligentization
The new generation of 400Hz power meters is integrating more digital signal processing (DSP) technology and self-diagnostic functions, providing richer power quality analysis and predictive maintenance data.
2. Integrated Solutions
The trend is towards integrating electricity meters with protection and control functions to form a comprehensive power management unit.
3. Wireless Communication Integration
Some new models are beginning to integrate Bluetooth, WiFi, or cellular communication modules for easy access and data transmission by mobile devices.
4. Enhanced Energy Efficiency Monitoring
With increasing global focus on energy efficiency, 400Hz meters are enhancing their ability to monitor and analyze equipment-level energy efficiency.
5. Maintenance and Calibration Key Points
400Hz meters require regular calibration to maintain accuracy, especially after use in harsh environments. Calibration should be performed in a laboratory with a 400Hz standard source to ensure traceability of measurement results. Routine maintenance should include cleaning, checking connection tightness, and verifying communication functionality.
Conclusion
As the “eyes” of specialized power systems, 400Hz power meters play an irreplaceable role in ensuring the safe and efficient operation of aerospace, military, and high-end industrial applications. With continuous technological advancements, these specialized meters are becoming more intelligent, accurate, and integrated, providing more comprehensive monitoring and management capabilities for critical power systems. A thorough understanding of system requirements, technical specifications, and environmental conditions is essential to fully realize the professional value of 400Hz meters in specialized frequency power measurement when selecting and applying them.
