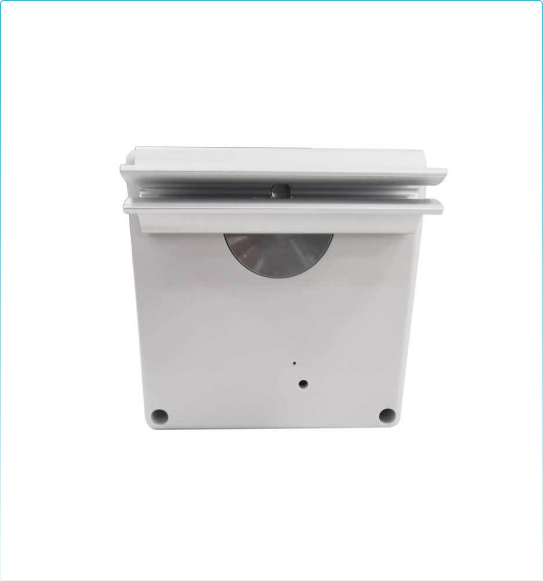

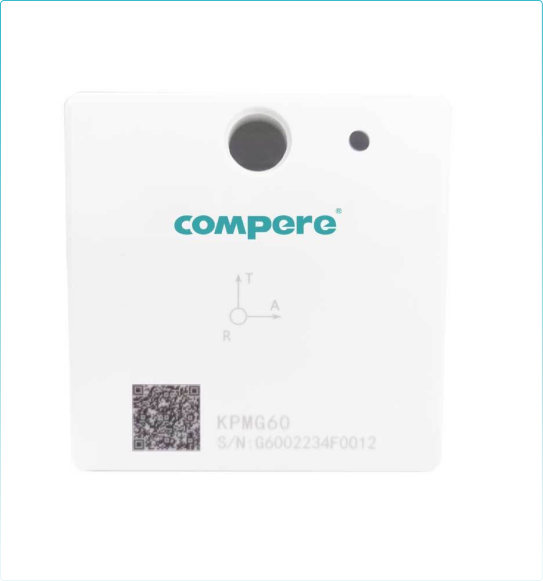

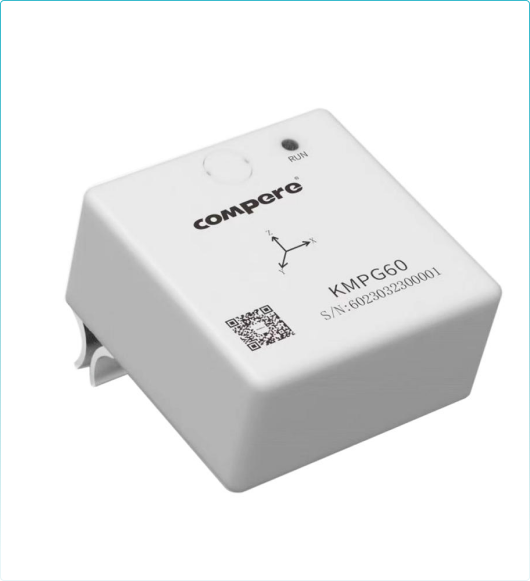

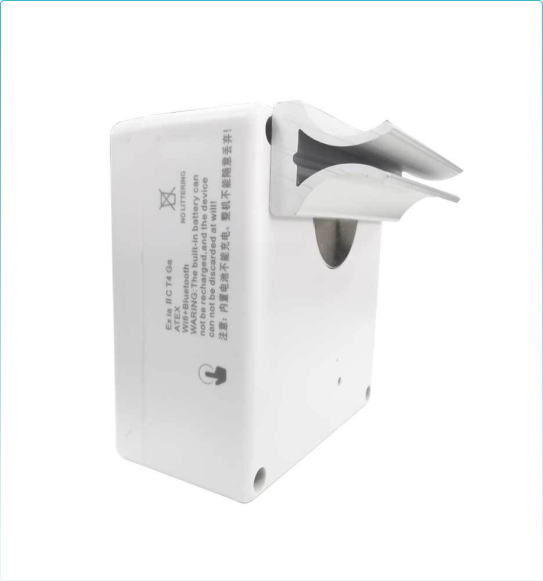

KPMG60 Motor Smart Temperature Vibration Sensor
KPMG60 Intelligent temperature and vibration sensor is a new type vibration data acquisition sensor. The product is waterproof, dust-proof, easy to install and maintain, and the wireless digital signal transmission method eliminates the noise interference caused by long cable transmission, and the whole measurement system has high measurement accuracy and anti-interference capability.
Features
- Motor protection controller, with multiple protection functions like Overtime start-up, overload, stall, phase failure, current balance, grounding, underload, blocking, overvoltage protection, undervoltage protection; underpower protection, power factor protection, phase sequence protection, etc. Optional leakage current protection, overheat protection, etc.
- Default Modbus RTU communication, optional Profibus-DP communication.
- With 8DI, 4DO
Functions of KPMG60 Motor smart temperature vibration sensor
- Vibration measurement: Vibration, Speed, Acceleration, Frequency
- Temperature measurement: -40～85℃
- Ultrasonic measurement: Microphone Range of amplitude: 0.6 N/m2 – 20 N/m2
- Measurement frequency: 100Hz~80kHz
Communication of KPMG60 Motor smart temperature vibration sensor
- Wifi wireless transmission with built-in antenna
- Outdoor unobstructed communication distance of 150 meters or more
- Bluetooth configuration acquisition and forwarding
Battery of KPMG60 Motor smart temperature vibration sensor:
- Lithium sub-battery power supply, capacity 12000mAh
- Temperature measurement: -40～85℃
- Working time more than 24 months (measurement interval 5 minutes, data upload interval 24 hours)
Other features:
- Easy installation, fixture fastening, gluing fixed to the measured equipment
- Protection class:IP66
- Impact limit:100g
- Ambient temperature:-40-85C

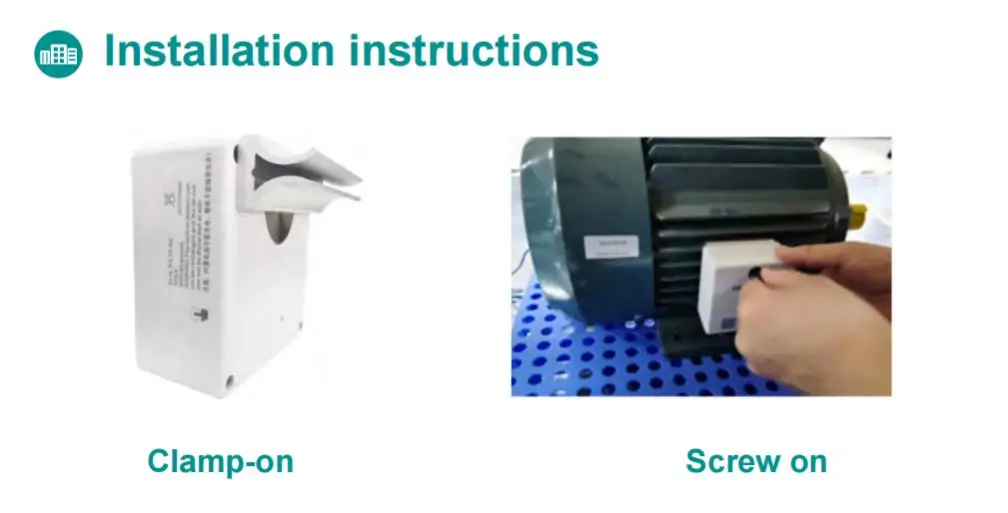

KPMG60 Motor Smart Temperature Vibration Sensor Installation Instructions
KPMG60 Motor Smart Temperature Vibration Sensor Technical Tables
| Technical parameters of KPMG60 smart bluetooth sensor wireless iot wifi motor vibration sensor | ||
Vibration Characteristics |
Measurement of vibration parameters | 3 axes (each axis contains displacement peak value, acceleration peak value, velocity RMS value) |
| Speed measurement range | 0.01-200mm/s | |
| Acceleration measurement range | ±16g | |
| Resolution | 0.01m/s2 | |
| Precision | Acceleration: ±5%@80Hz Speed: ±5%@80Hz Displacement: ±5%@80Hz |
|
| Frequency Response Range | 10Hz-1600Hz | |
| Temperature Characteristics | Measurement Range | -40～85℃ |
| Resolution | 0.1°C | |
| Precision | ±1℃(under temperature stable condition) | |
| Ultrasonic measurements | Microphone | Range of amplitude: 0.6 mN/m2 - 20 N/m2 |
| Measurement frequency: 100Hz~80kHz | ||
| Power supply parameters | Power supply method | 3.6V (Li-ion battery) |
| Battery Capacity | Battery capacity 12000mAH, 3.6V | |
| Standby current | <30uA | |
| Operating current | <20mA during acquisition, <300mA during data upload | |
| Housing parameters | Housing | Stainless steel/reinforced PBT |
| Dimension(L*W*H) | 86mm*86mm*41.9mm | |
| Installation method | Aluminum clamp, flat bottom mounting (on equipment platform or heat sink bars) | |
| Protection level | IP66 | |
| Working Environment | Hitting the Limits | 100g |
| Ambient temperature range | -40~85℃ | |
KPMG60 Motor Smart Temperature Vibration Sensor Application

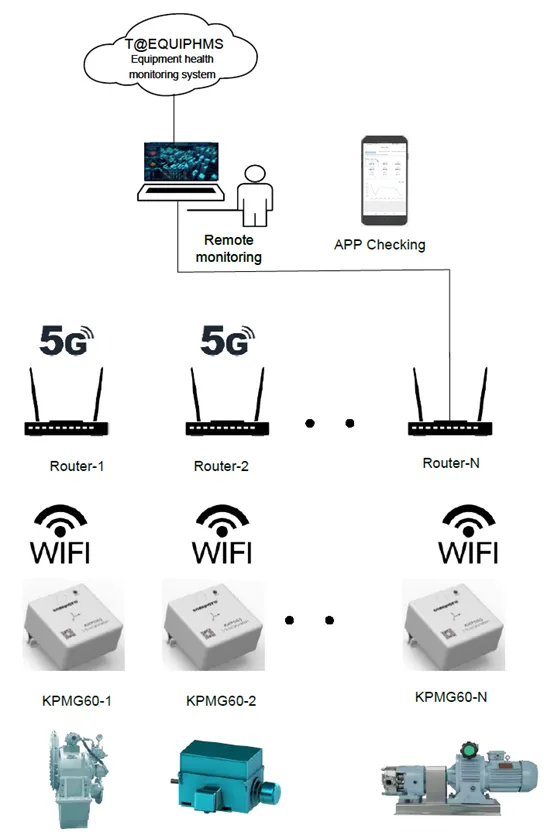

KPMG60 Motor smart temperature vibration sensor solution diagram
